About the product
- Work for 15.6 inch 1366x768 40 pin WLED LVDs LCD display ,the screen model no. are: 15.6 inch LP156WH2 TL LP156WH3 TL LP156WH4 TL LP156WHB TL BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04.

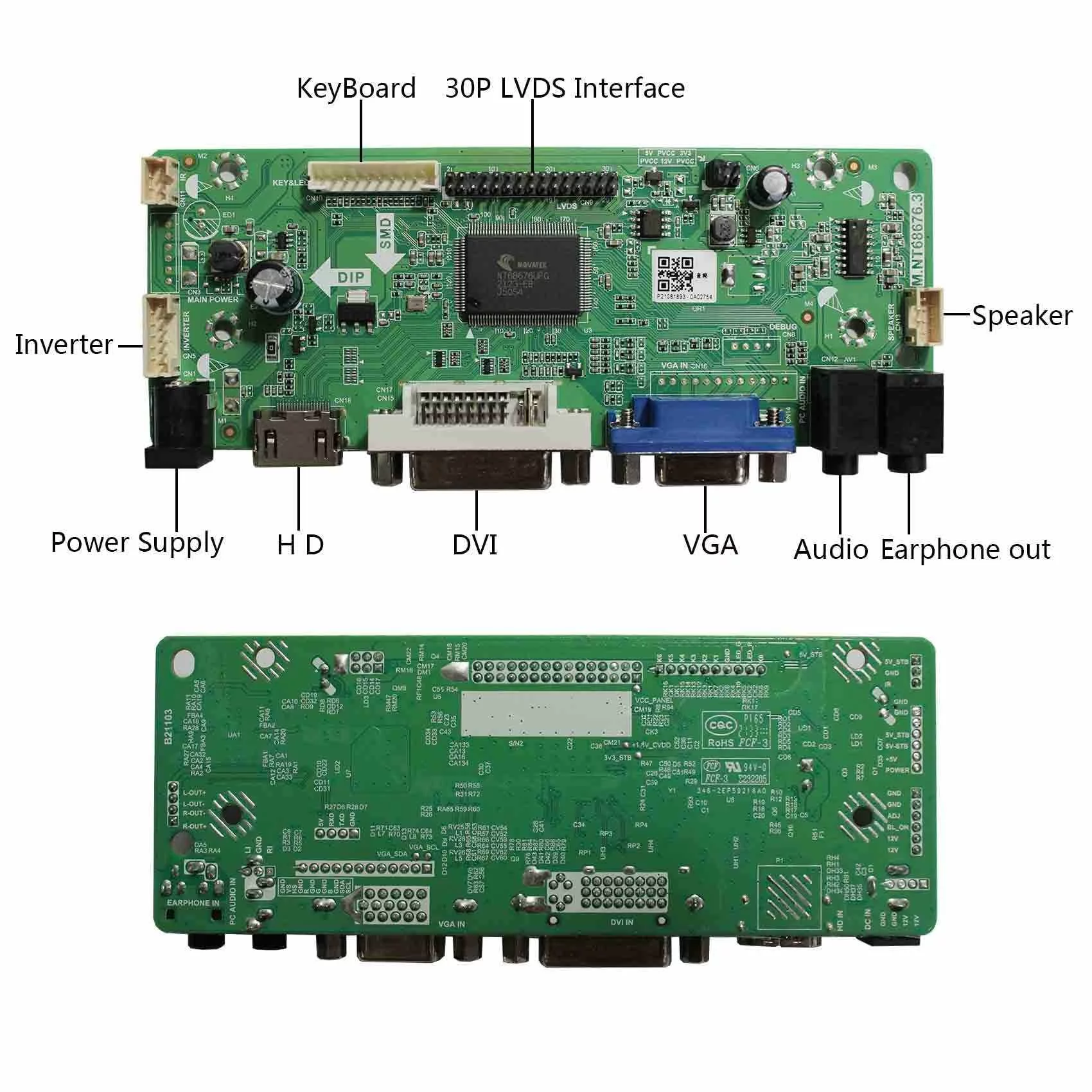

- Video input: HD-MI VGA DVI ,Audio Output: Speaker Connector ?8ohm 2W 4Pin PH2.0 connection),Please use the board in insulated environment.
- Input Power : 12V DC more than 2A ,port size :5.5x2.1mm, pls prepare power adapter by yourself.If screen restart again and again ,pls change a larger current power supply and try again.

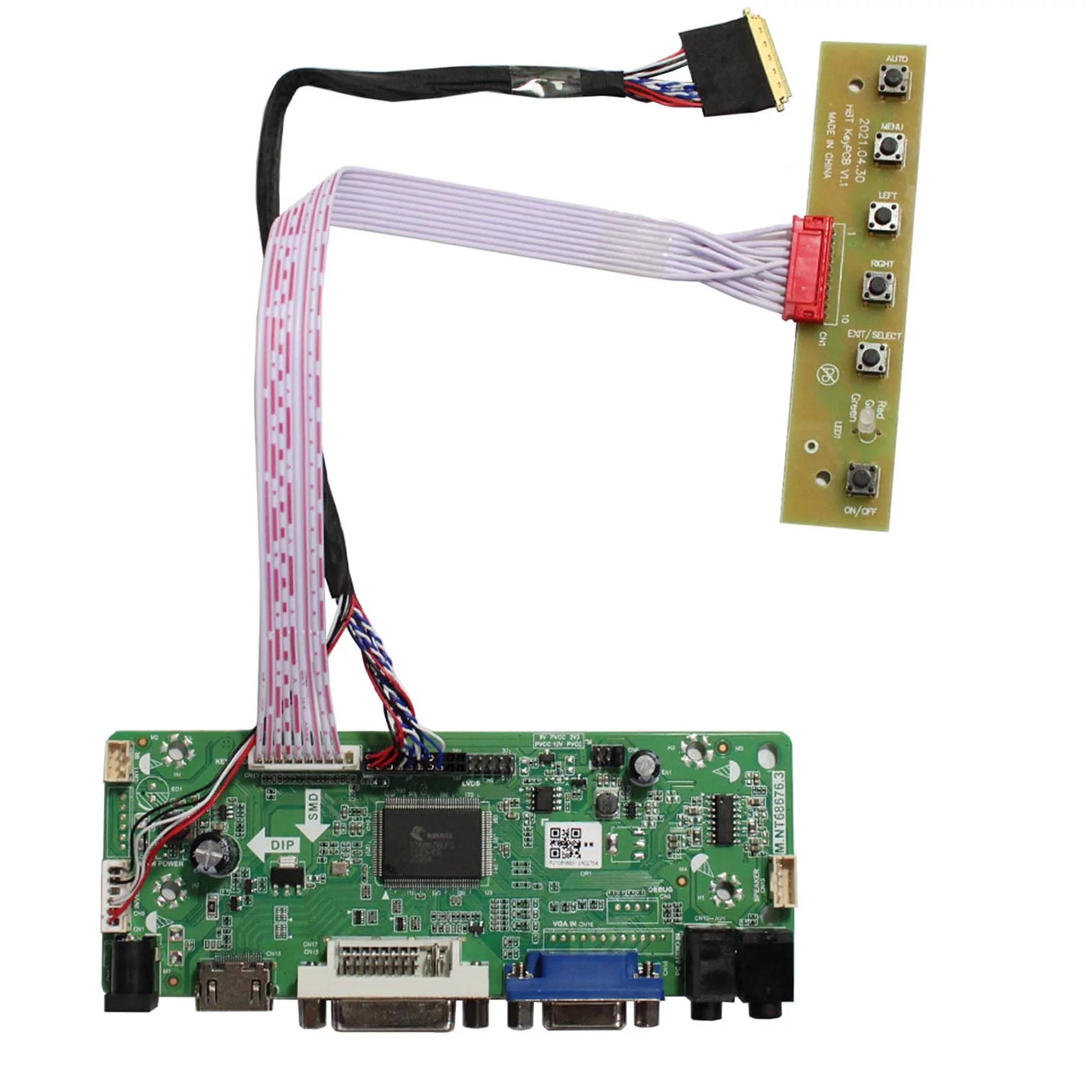

- Plug & play: with compatible screen , connect screen signal port as link pictures ,Power on ,enter into HD-MI/VGA/DVI signal cable ,the screen can be lit up .
- Board failure self-check: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen signal port, No enter signal ,the\"no siganl\" words showing on screen means the problem comes from signal ,Pls try with other signal cable /resource; White/Black screen ,Check screen signal port connecting/resolution/3.3V jumper pin/Signal resource.
