About the product

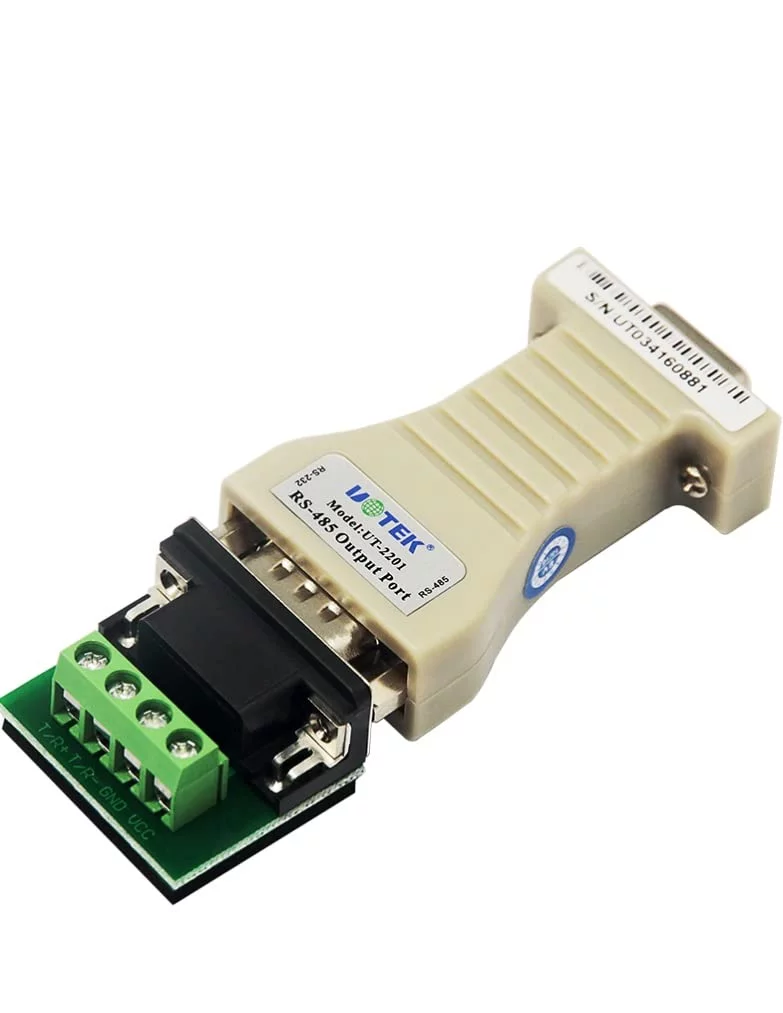

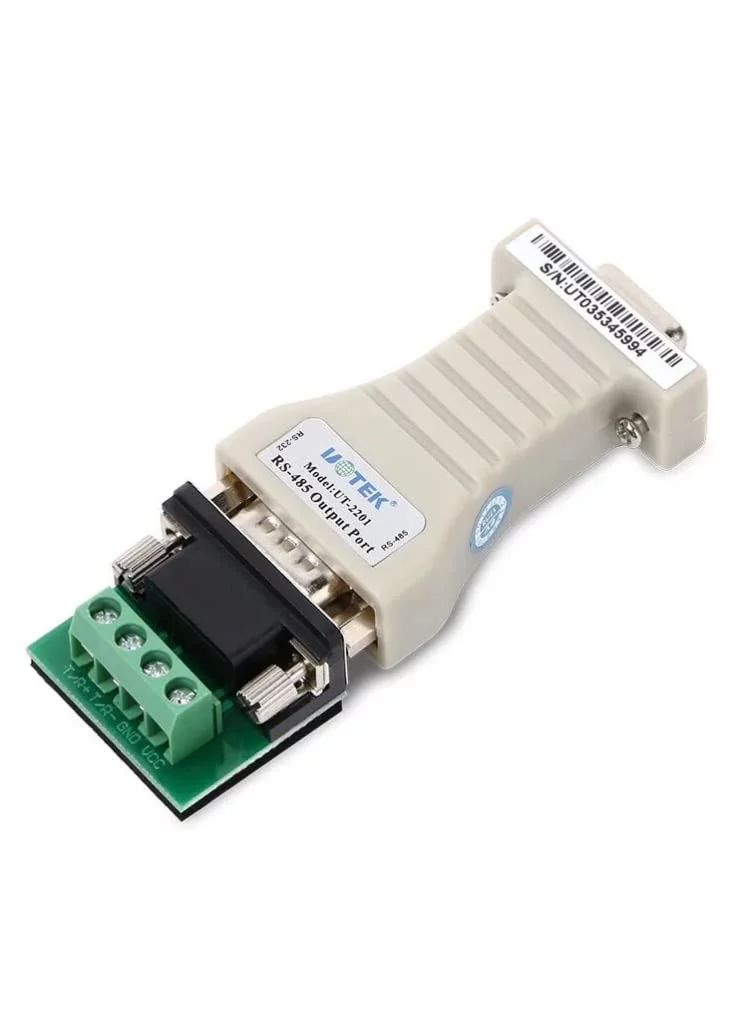

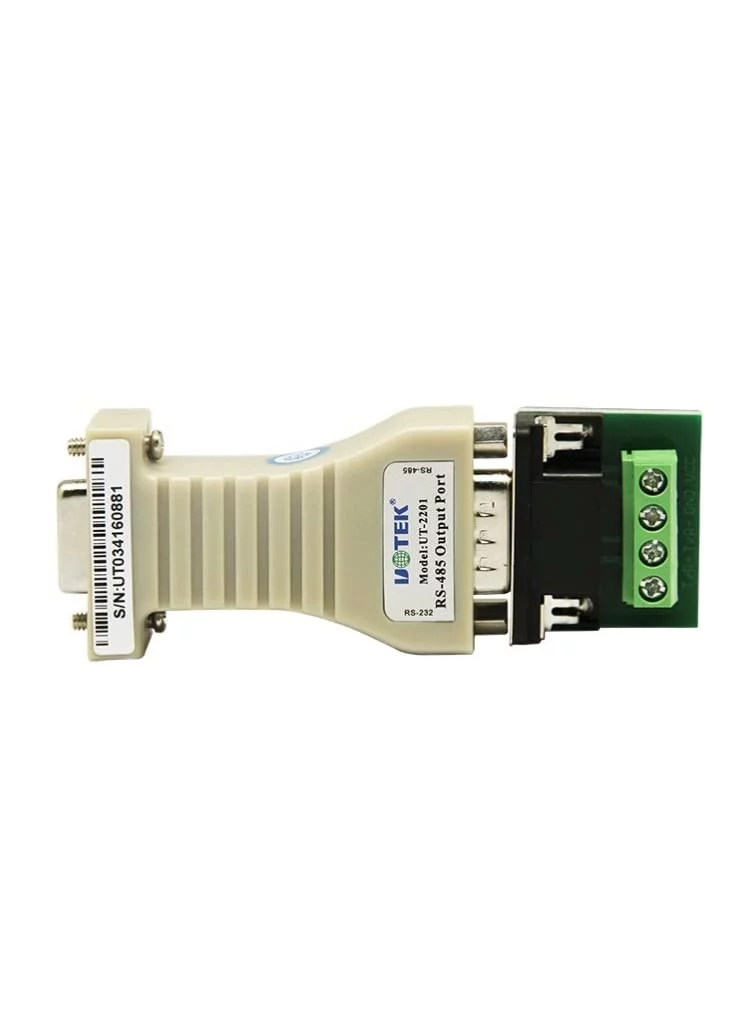

- Pro grade RS232 to RS485 converter. It easily lets you connect any RS485 device directly to COM port
- Standards: RS-232C, RS-485 EIA/TIA ? Connector: RS-232 DB9 female; RS-485 DB9 male, with terminal block
- Working mode: asynchronous half-duplex differential transmission ? Transmission media: Twisted-pair or shielded cable
- Baudrate: 300bps-115.2Kbps ? Dimension: 63mmX33mmX17mm ? RS-232 to RS-485 Serial Communication Data Converter Adapter Mini-Size
- Operating temperature: -25? to 70? ? Relative humidity: 5% to 95% Transmission distance: 1,200m(RS-485), 5m(RS-232)
