About the product

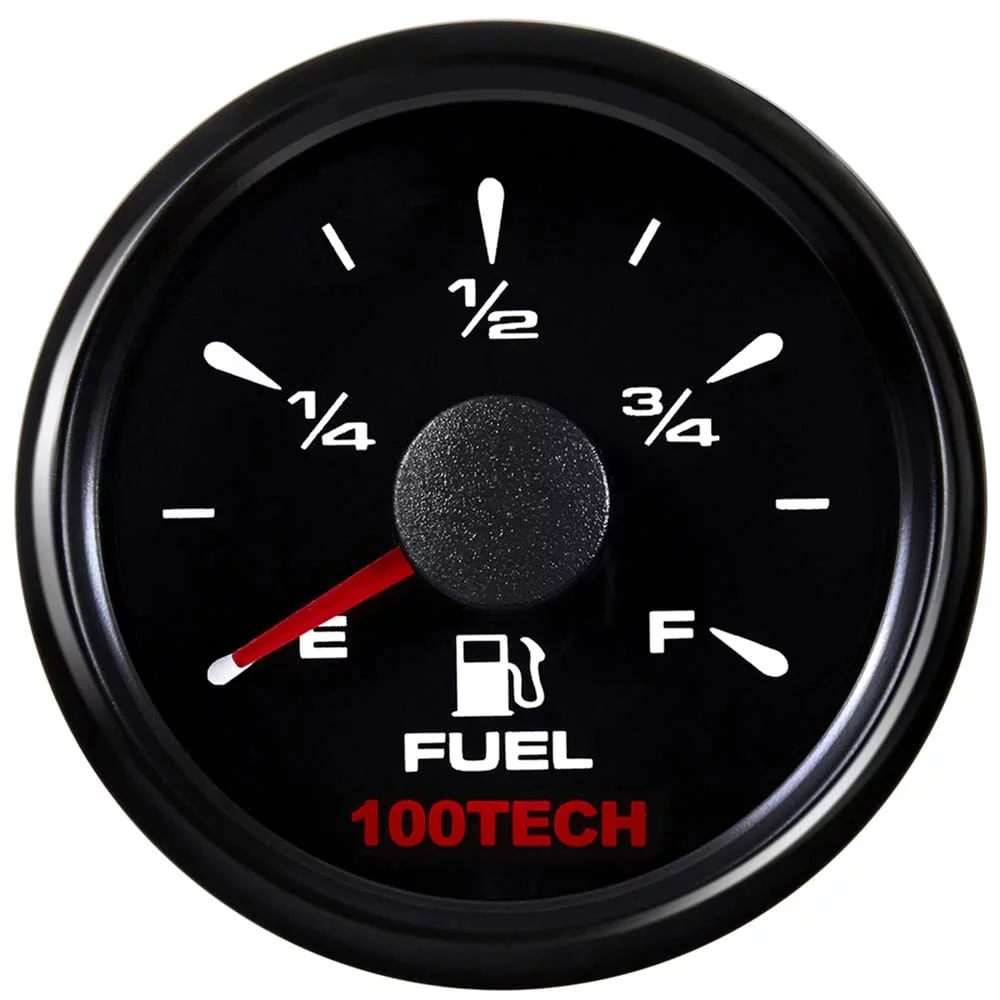

- [Precision Performance & Stable Fuel Monitoring] This Aftermarket Fuel Level Gauge Features a precision-engineered needle with anti-vibration technology, ensuring stable readings even in rough seas or high-vibration environments.The 8-level fine scale design significantly improves the reading accuracy and identification

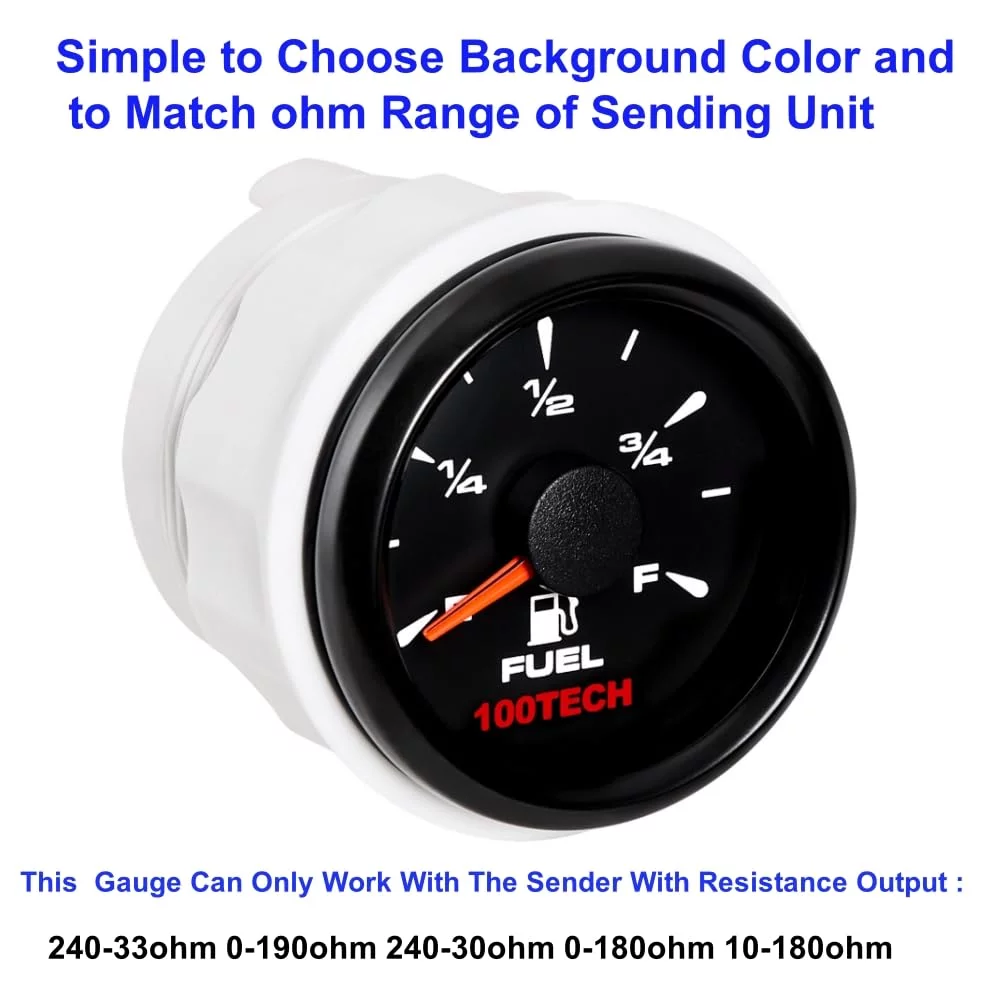

- [Adjustable and Wide Application] This Fuel level Gauge Works with Most American Standard fuel senders. Signal Input: 240-33ohm 0-190ohm 240-30ohm 0-180ohm 10-180ohm. Clear installation instructions ensure effortless setup

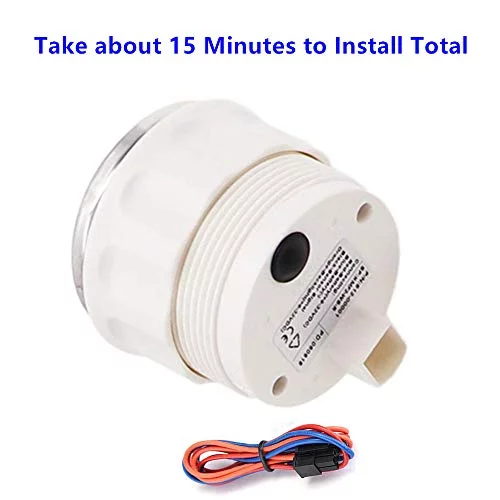

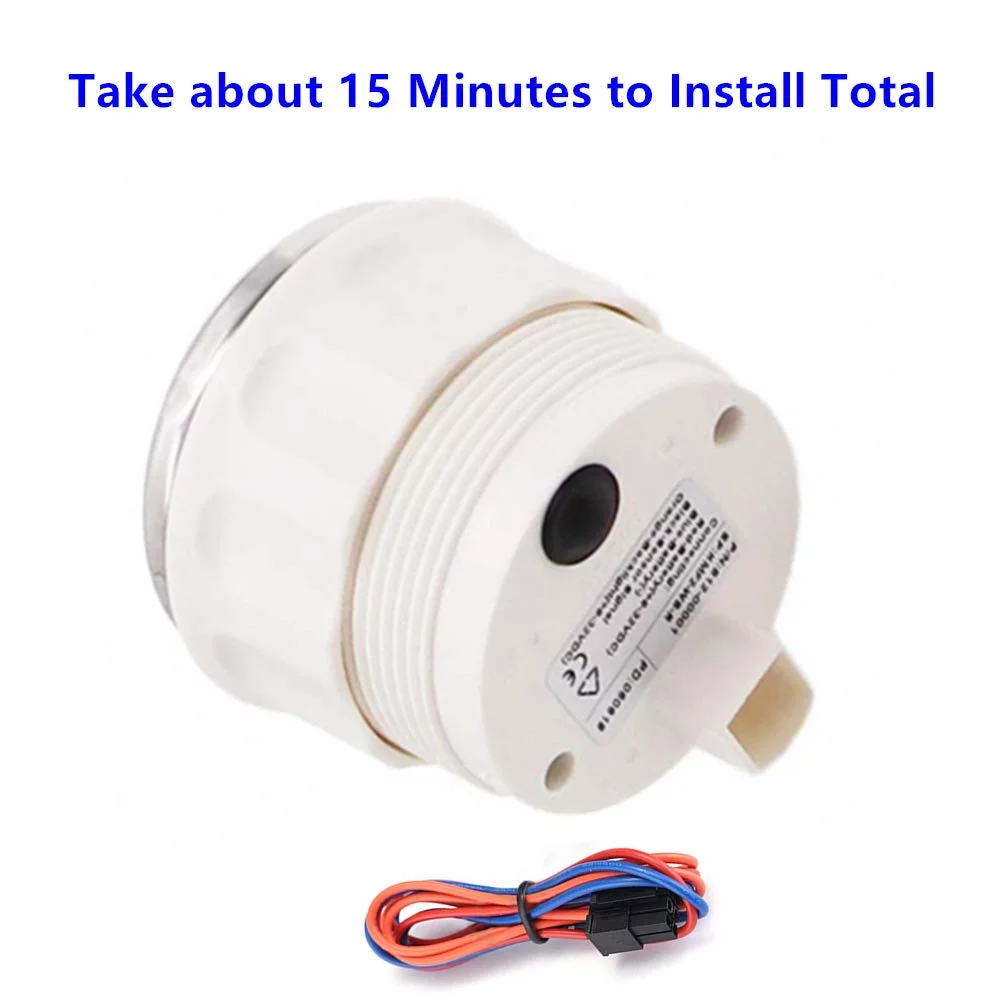

- [Easy to install and Calibrate] Install diameter: ?52mm or 2-1/16\'\', Indication range: E-F, Working voltage: 9-32v dc [fit 12V-24V Vehicle or Engine] The instruction is Easy to Follow
- [8 Color Adjustment Cycle Modes] Press the mode button briefly to switch the backlight color. Includes Red(Default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple,automatic circulation. Allow You to Match Your Factory Dashboard Lights or Add a Custom Style to the Interior of Your Vehicle
- [Durable and Weatherproof Design] This fuel tank level gauge Built with a 316 stainless steel bezel and IP67 protection rating. 100TECH Guarantees with 1 Year Limited & Free Lifetime Technical Support
- Note: 1)The Default Setting of This Fuel Level Gauge is 240-33ohm. 2)This 100TECH Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ?240-33ohm 0-190ohm 240-30ohm 0-180ohm 10-180ohm . The Resistance Range Can Be Adjusted By Simply Pressing A Button. 3)This Boat Fuel Gauge Can Not Work With the Fuel Sending Unit with Output Signal(0-30ohm, 0-90ohm,73-10 ohm etc.).If you need, you can choose our corresponding products
- Signal Settings: Long press the mode button for 3 seconds to enter the signal input setting mode, the backlight will begin to flash. The needle will stand at \"E\" position firstly,Then press the buttons one by one until you select the signal parameters that meet your needs
