About the product

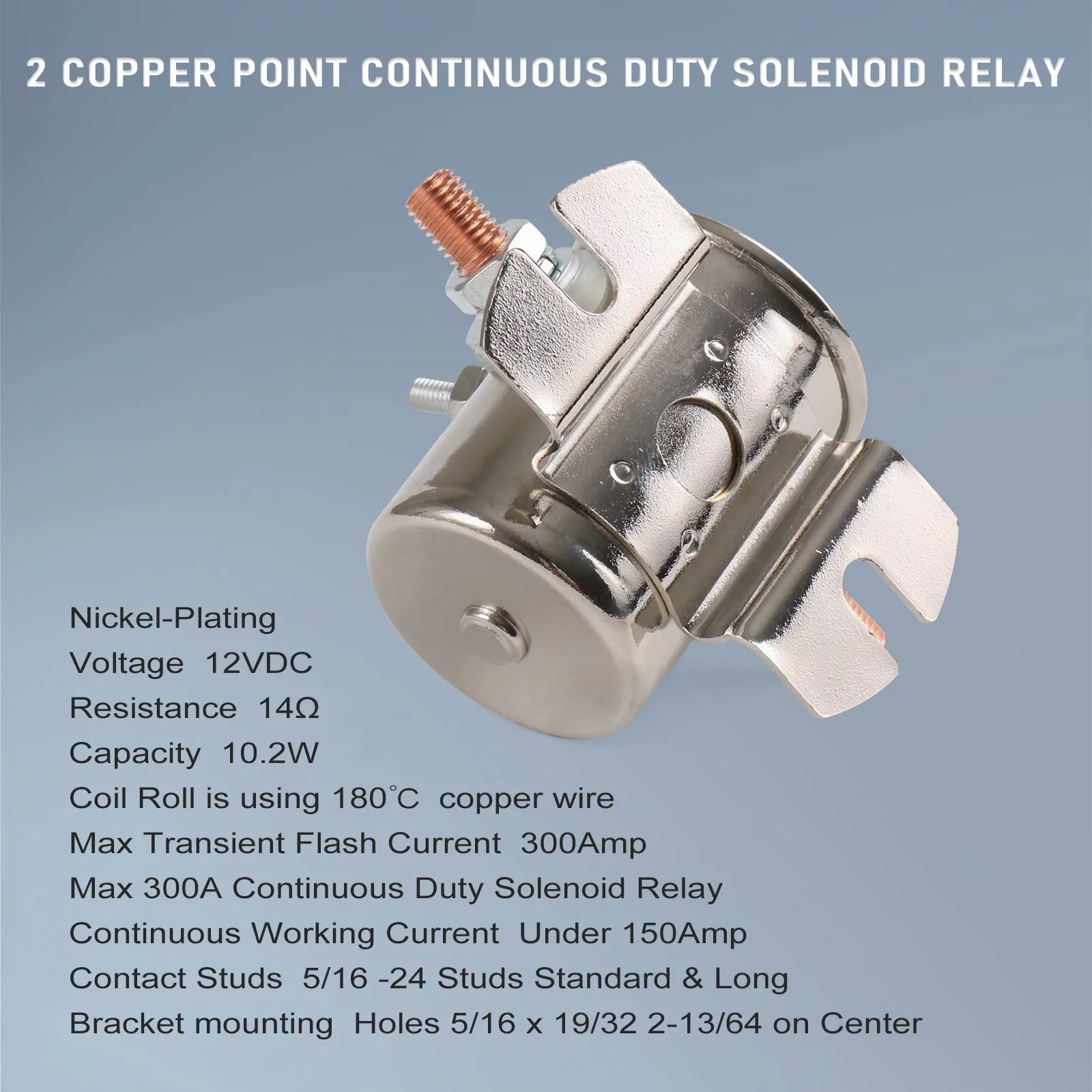

- ? ?Specification?4-pole battery isolation solenoid valve: Voltage: 12VDC; Resistance: 14?; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center
- ? ?Materials?4 Terminal Max 300A 12 Volt With 2 Copper Point Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180? copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment.The Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment.

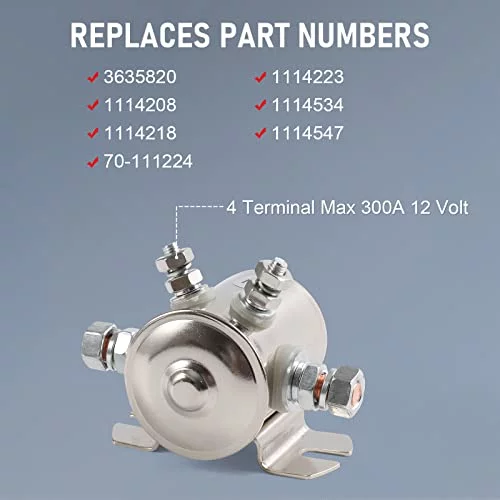

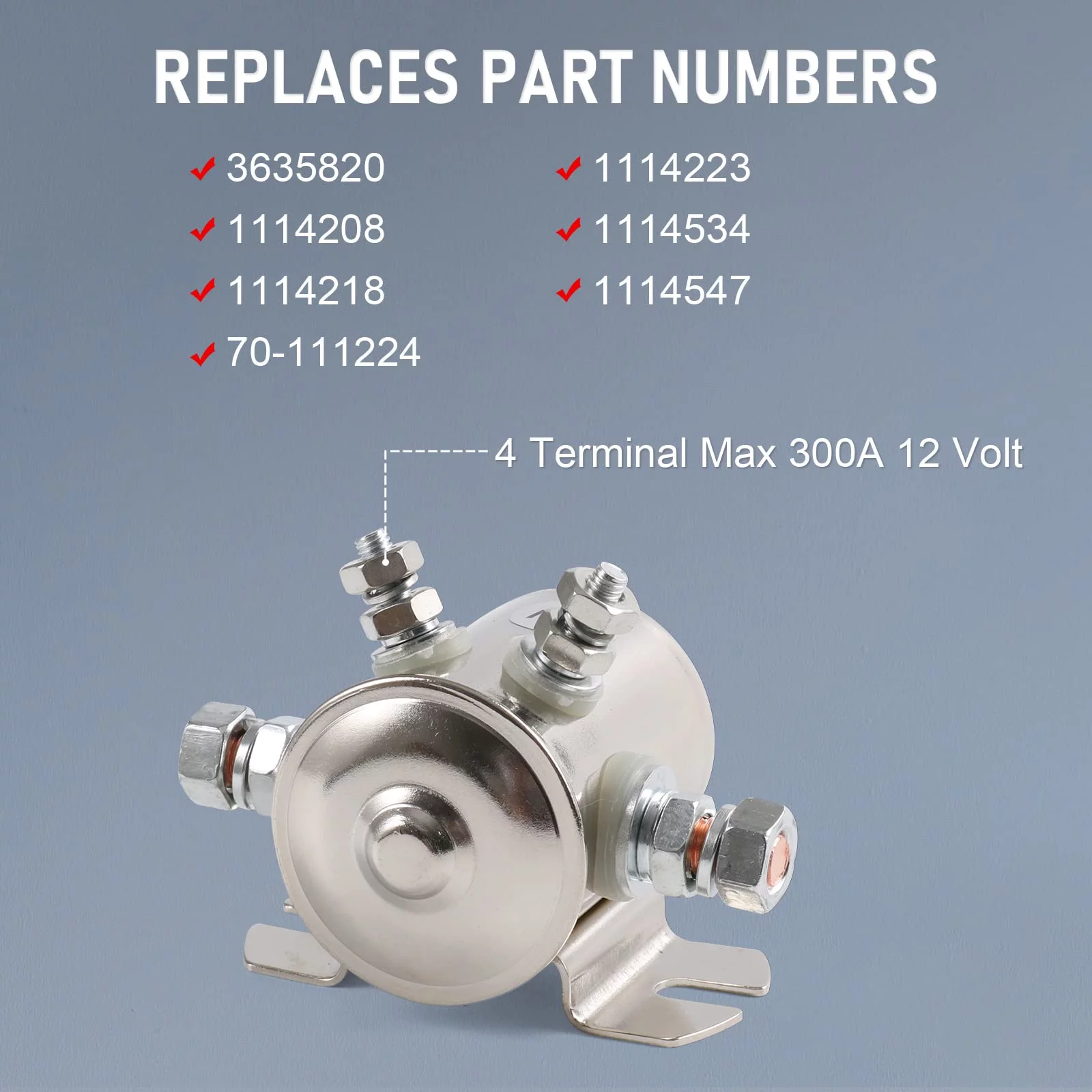

- ? ?Replaces Parts Number?This Duty Solenoid Relay Replacement For 70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547
- ? ?Function ?good saver to your battery ( Max Flash Current 300A). Copper Terminal Contactor Improve Electricity - Reduce The Power Loss,Reach Transient Current 300A; Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp. Continuous Work is 5 minutes, must cool down in 20 seconds.
- ?Note?Usually with 80Amp as working current, need Break off 20 seconds after 5 minutes Continuous working.
