About the product

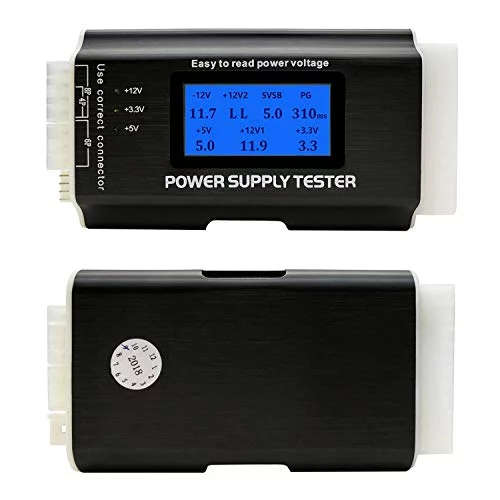

- [8-in-1 ATX Power Supply Tester] -- Support test 20-pin ATX / 24-pin ATX / HDD (IDE) / Floppy 4-pin / PCI-e 6-pin / 4-pin / EPS 8-pin (NOTE: can not fit for PCI-e 8-pin) / SATA connectors

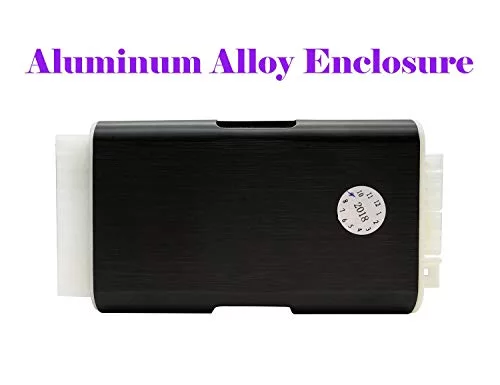

- [Aluminum Alloy Enclosure] -- Light and Easy to Carry, High Strength, Nice Thermal Conductivity & Corrosion Resistance

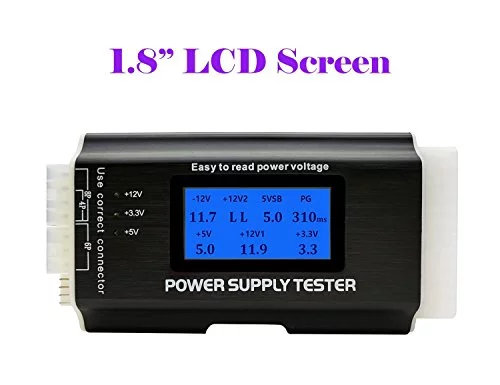

- [1.8\'\' LCD Screen] -- Outputted Voltages shows on the 1.8\'\' LCD Screen, Easy to Read ( The 1.8\'\' LCD Screen was Powered by 20-pin / 24-pin Connector ), Note: The Product Screen Has a Load of Scratches All Over It?Because The Screen is Easy to Scratch, We Put a Protective Film on It, If You Think It\'s Not Beautiful, You Can Tear It Off by Yourself
- [Beep Alarm] -- When your power supply test value is beyond normal range, the Power Supply Tester would issue a buzzer alarm, Easy to Know
- NOTE: The voltage of 20pin / 24pin connectors is displayed by the LCD Screen, as \"+3.3V\", \"+12V1\", \"+5V\", \"-12V\", \"5VSB\", \"PG\" (except \"+12V2\" on LCD Screen); The voltage of PCI-e 6P / 4P / EPS P8 connectors is displayed by the LCD Screen as \"+12V2\"
- NOTE: The voltage of IDE (HDD), Floppy, SATA connector is displayed by the lights on the left of the power tester, IDE (HDD) connector is displayed by \"+12V\" & \"+5V\" lights; Floppy connector is displayed by \"+12V\" & \"+5V\" lights; SATA connector is displayed by \"+12V\", \"+3.3V\" & \"+5V\" lights
- NOTE: When you test the SATA connector, please confirm how many wires your connector is. When the 5-wire SATA connector is normal, the tester will light up three LED lights \"+12v\", \"5V\" and \"+3.3v\". When the 4-wire SATA connector is normal, the tester will only light up two LED lights \"+12v\" and \"+5v\"
