About the product

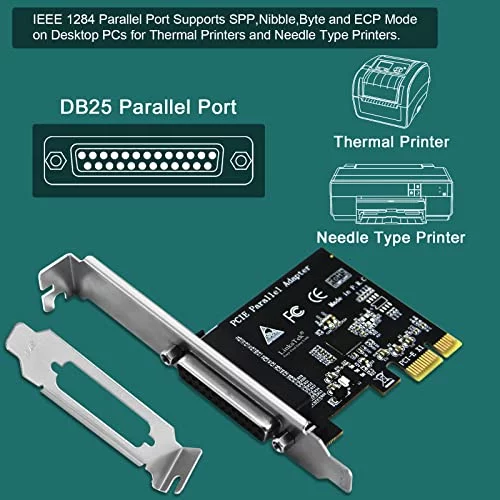

- 1. PCIE-PA1 will provide single DB25-Pin parallel port on desktop PCs and industrial device. Allow users full use old type parallel port peripherals device such as printers, scanners, CD-ROM drives, memory card readers, bar code scanners and more parallel port device.
- 2. Fully support IEEE 1284 protocol. Supports ECP (enhanced capability port), EPP (enhanced parallel port), SPP (standard parallel port), Nibble, Byte mode will work on most of parallel port peripherals device.

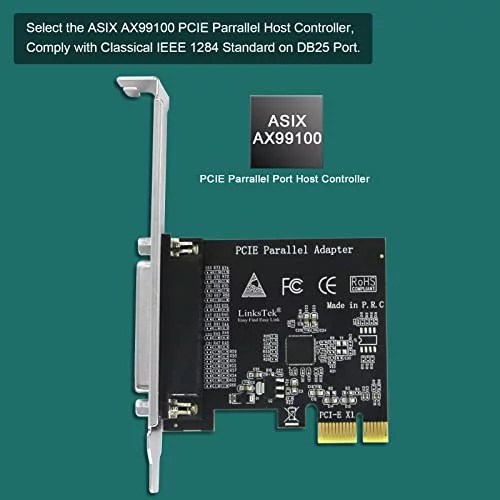

- 3. Selected by ASIX AX99100 PCIE to parallel host controller. Provide 2.5Mbps max communication speed. Will compatible with most of Intel, AMD and ARM platform hardware on Windows OS and Linux kernel system.
- 4. System Requirements: Windows 11, 10, 8.x, 7, Vista, XP (32/64), Windows Server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019, 2022. Linux Kernel, 2.6.x, 3.x, 4.x, 5.x.

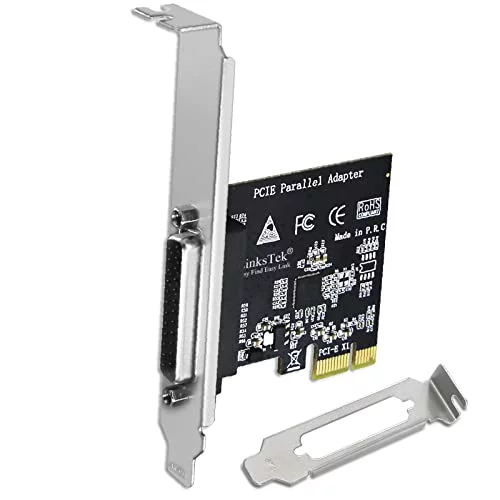

- 5. Comply with PCIE specification revision 2.0, works on PCIE 1.0, 2.0, 3.0, 4.0. PCIE X1 interface compatible with PCIE X1, X2, X4, X8, X16 slot. Comes with full height bracket and low-profile bracket and full height bracket will work on standard size PCs and slim PCs.
- 6. ATTENTION: 1. Must make sure PCs have one empty PCIE slot. 2. Please use screwdriver changes to low profile bracket if using slim PCs. 3. Please refer user manual install correct driver from Mini-CD on PCs system.
