About the product

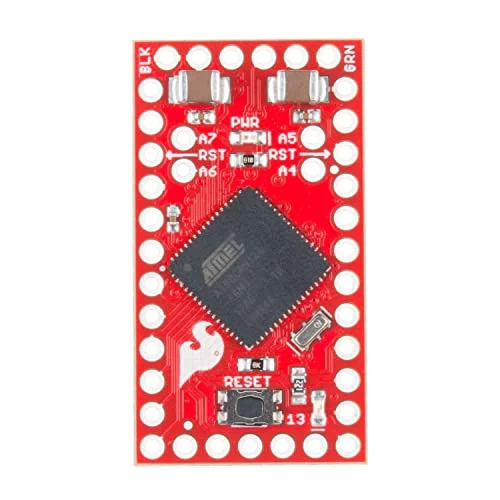

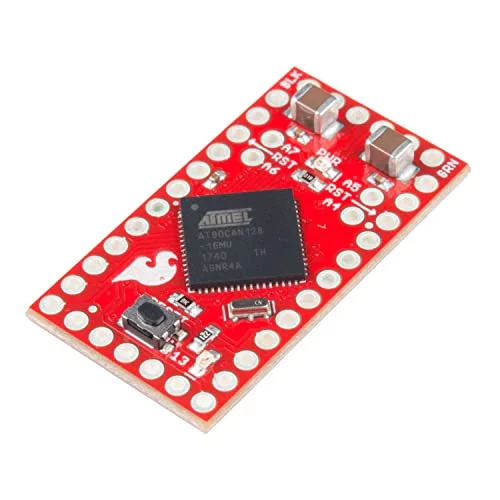

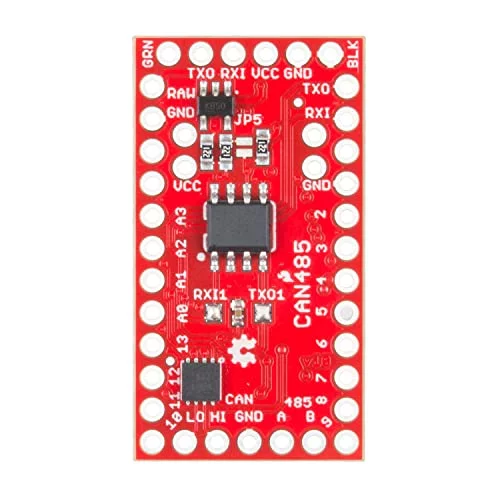

- SparkFun AST-CAN485: This board is a miniature Arduino and has the form factor of the pro mini, Also possesses an onboard (Control Area Network) with RS485 ports
- With the onboard CAN and RS485 ports, its easy to interface with while quickly enabling a multitude of industrial devices
- Features: Uses the AT90CAN microcontroller, 16MHz Clock, 8 analog inputs, 2 UARTs, 16 Digital I/Os, DC Input: 5--16V (150mA Current Max)
- AST-CAN485 Dev Board: Based on Atmel AT90CAN128 processor, Runs at 16MHz, 128kB or Flash, 4kB of SRAM while featuring a hardware CAN controller
- Note: AST-CAN485 has an onboard regulator, allowing for unregulated input voltage to be supplied on the VIN pin, allowable input voltage range 7--16V but please, keep in mind that the recommended input range is 7
