About the product

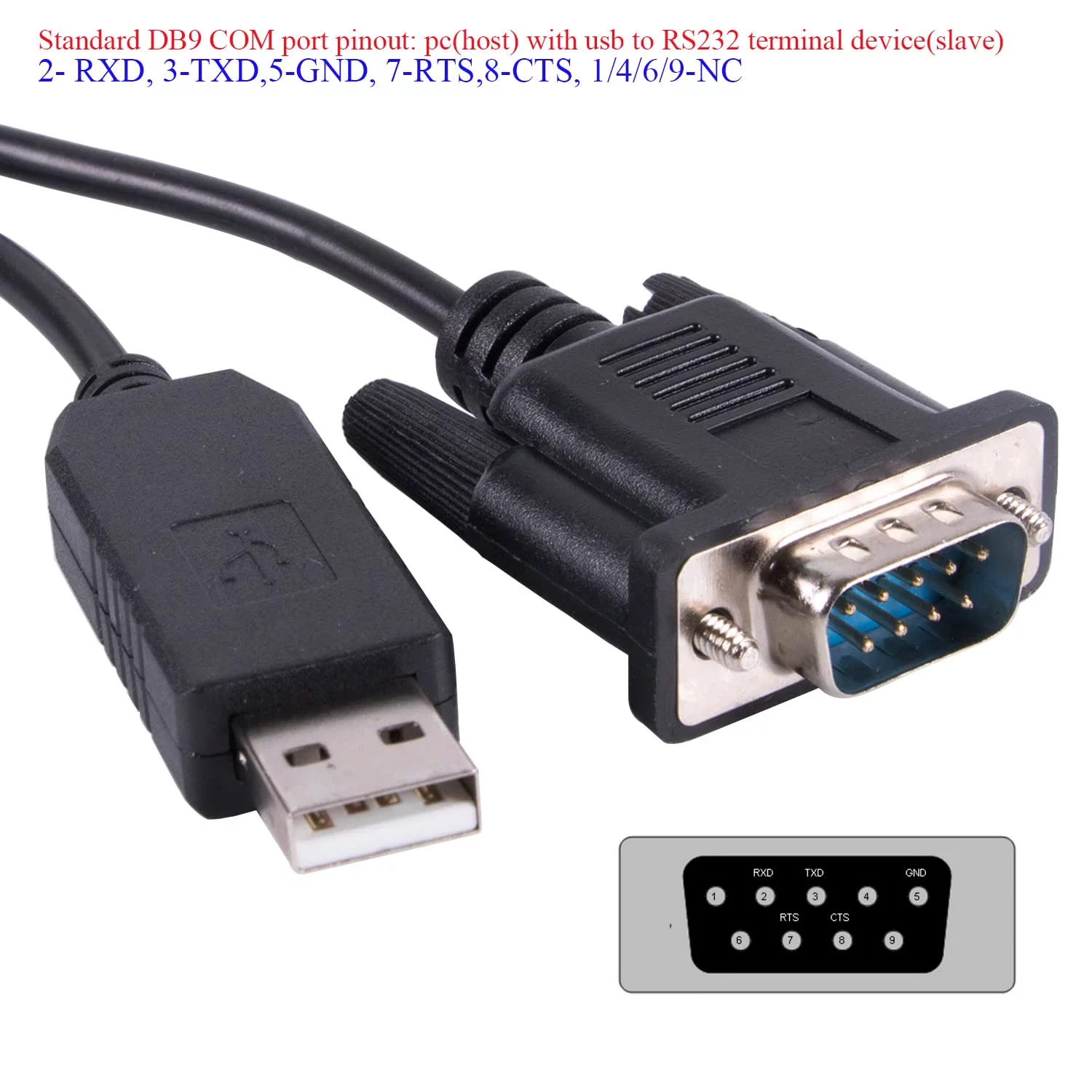

- Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave),2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC

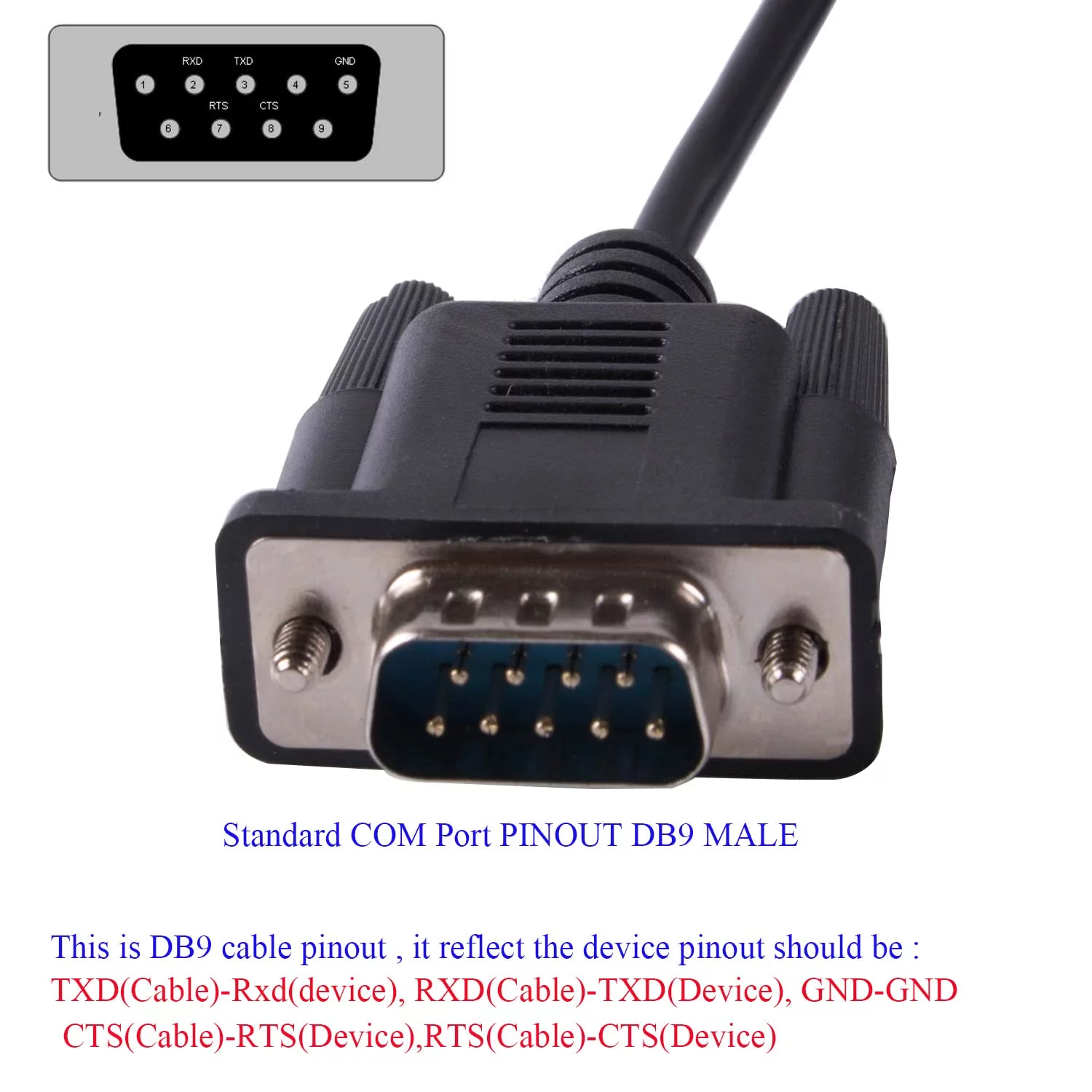

- This is DB9 Male Pinout , Please keep your attention special, the cable\'s TXD,it reflects to RXD of device, The cable\'s RXD,It reflects to TXD of device, CTS reflects RTS of device, RTS Reflects CTS of device.

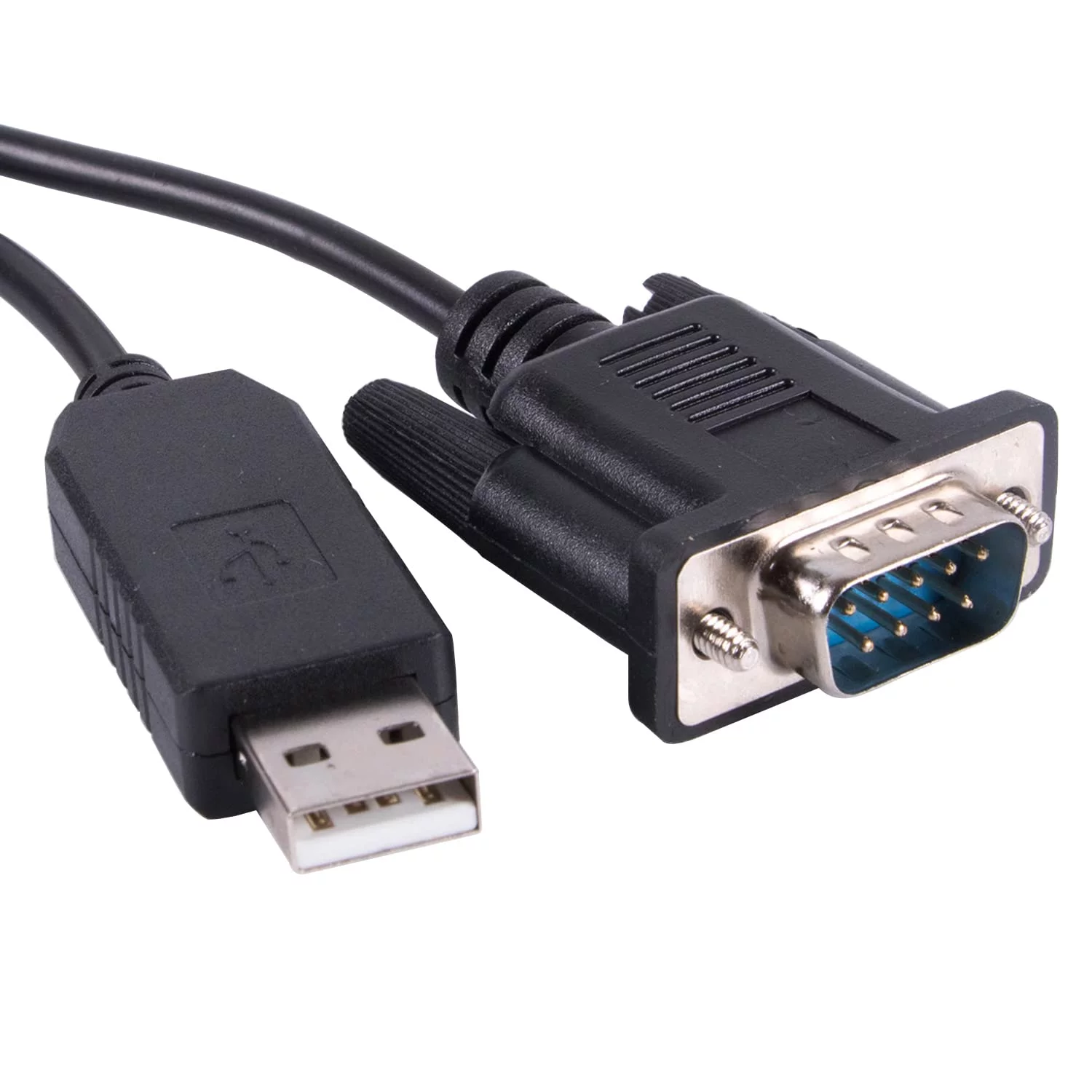

- USB to db9 male serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9 port to laptop or desktop via USB port
- USB to Standard Com D-SUB Serial Port RS232 Serial Adapter, Support Win7/8/10/2000/XP/ANDROID/VISTA/WINCE/LINUX
- Integrated FT232RL USB UART Chip;Baud Rate up to 12Mbps, Please intall the FT232RL driver before usage . FT232RL website download: https://ftdichip.com/drivers/vcp-drivers/. Made by usangreen, Not FT232RL Company
