About the product

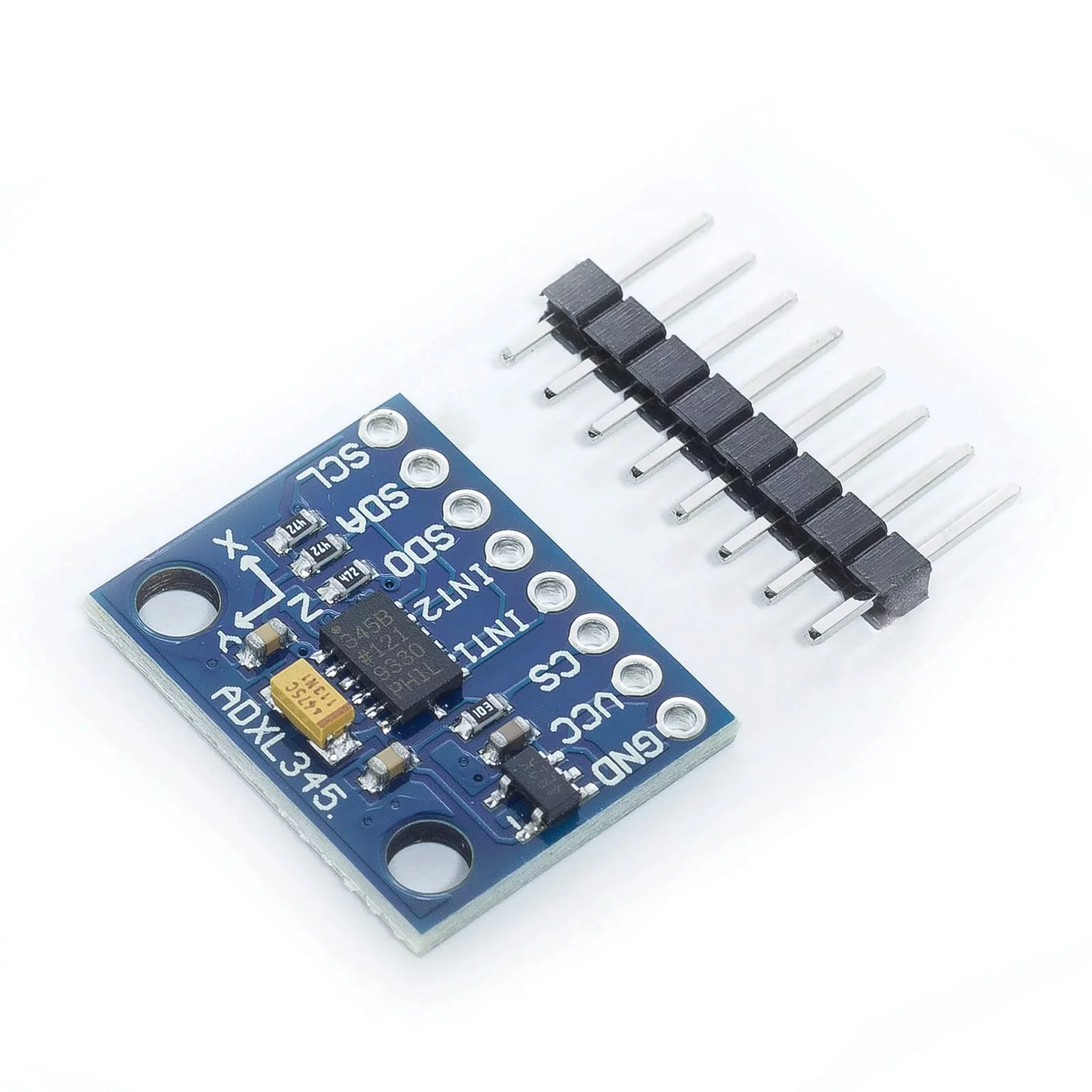

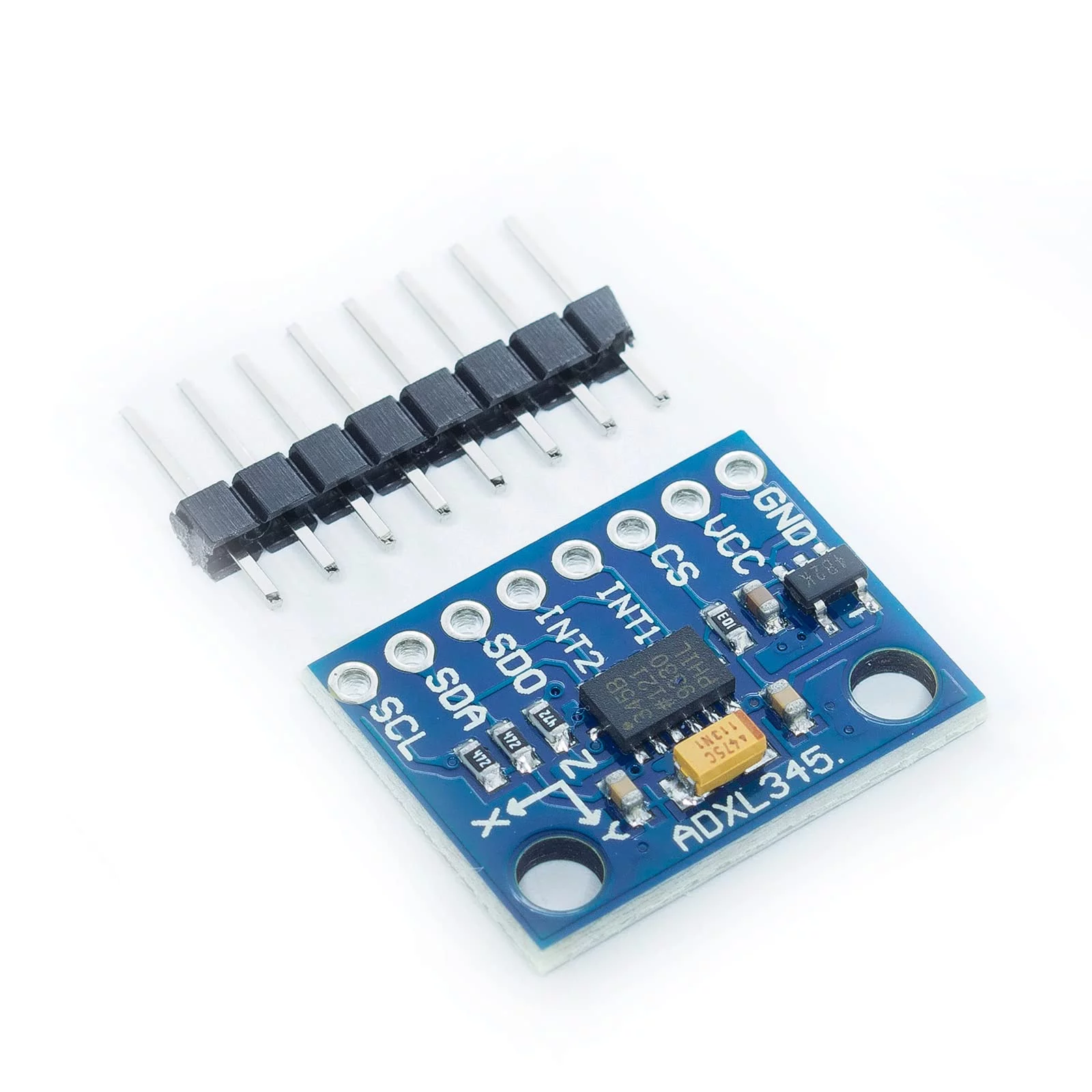

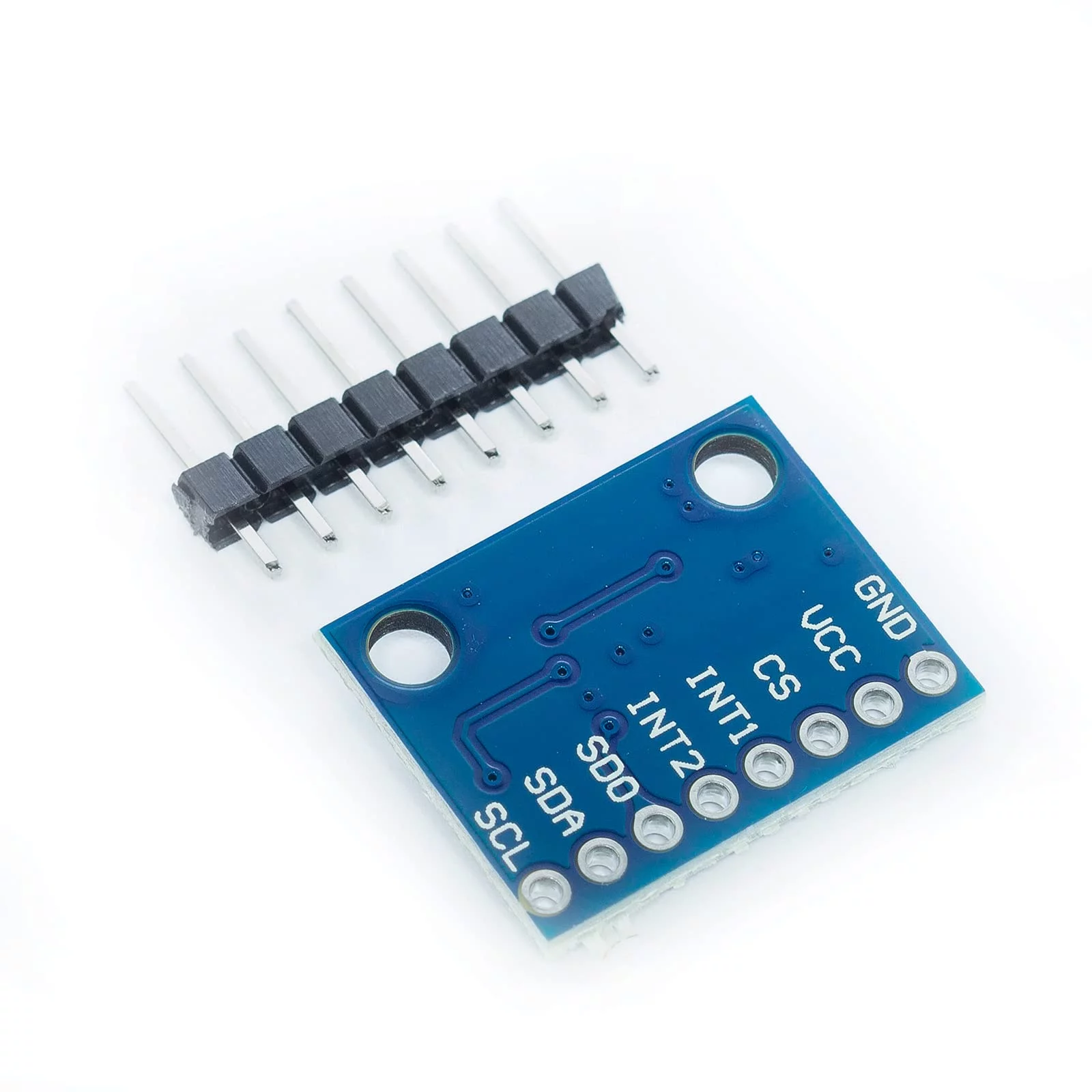

- The ADXL345 is a small, thin, low power, three-axis accelerometer with high resolution (13-bit) measurement up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface
- Flexible interrupt modes Any interrupt mappable to either interrupt pin
- 32 level output data FIFO minimizes the load of the host processor
- Measurement ranges selectable and bandwidth selectable via serial command
- Working voltage: 3.3v-5v; PCB size: 1.3 x 2.3 cm
